A5 SPORT AS - JINYU Tire - Time Tells Quality

0°
30°
60°
90°

All Season

Handling

Sporty

M+S

The A5 SPORT AS is an all-season ultra high-performance tire that combines handling performance, ride comfort, and all-season capability. It delivers responsive steering and stable handling, while reducing vibration and noise, and delivers dependable traction on wet and snowy roads.

Technical profile

Speed symbol: W, Y

Tread width: 205-275

Series: 35-45

Inch: 17-20

UTQG: 560 AA A

Features

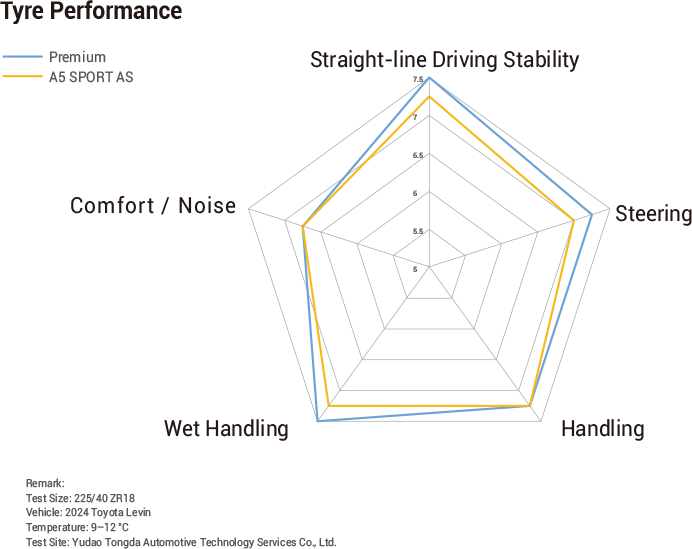

Performance
Performance	Touring	Ultra High Performance	Highway Teerrain	All Terrain	Rugged Terrain
Tread Wear	10	8	9	9	8
Wet Breaking	10	10	9	9	9
Dry Breaking	10	10	9	9	9
Handling	8	10	9	8	8
Ride Comfort	10	8	9	8	7
Quiet Ride	10	9	9	8	7
winter/Snow	7	7	7	9	8
Ice	/	/	/	9	8

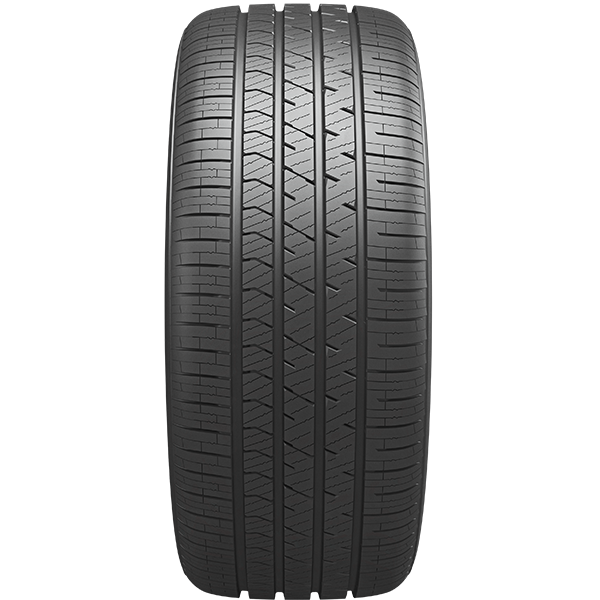

Shoulder Design

Grooves throughout the continuous ribs improves water drainage while maintaining steering responsiveness.
Central Chamfered Cross Grooves

Prevents tread block edge damage, improves wear resistance, and enhances water drainage.

Precision Sipes

Enhances traction on wet and snowy roads, boosting all-season driving confidence.
Central Tread Blocks

Continuous tread blocks reduce contact deformation, minimizes rebound air vibration, and enhances ride comfort.

Tire Parameters

How to read your Tire

ALL

20"

19"

18"

17"

inch	Series	Size	LI&SS	XL	STD Rim	Rim Width Min	Rim Width Max	Tread Depth（mm）	Max Load(IBS)	Max Pressure(psi)	Overall Diameter	UTQG
20	35	245/35R20	95W	XL	81/2J	8J	91/2J	-	1521	50	686	560 AA A
20	40	275/40R20	106Y	XL	9.5	9	11	-	2094	50	736	560 AA A
20	45	255/45R20	105Y	XL	8.5	8	9.5	-	2039	50	746	560 AA A
20	45	245/45R20	103W	XL	8	7.5	9	-	1929	50	736	560 AA A
19	40	245/40R19	98W	XL	8.5	8	9.5	-	1653	50	695	560 AA A
19	40	235/40R19	96W	XL	8.5	8	9.5	-	1565	50	679	560 AA A
19	40	225/40R19	93Y	XL	8	7.5	9	-	1433	50	671	560 AA A
19	45	245/45R19	102W	XL	8	7.5	9	-	1874	50	711	560 AA A
18	40	245/40R18	97Y	XL	8.5	8	9.5	-	1609	50	661	560 AA A
18	40	235/40R18	95W	XL	8.5	8	9.5	-	1521	50	653	560 AA A
18	40	225/40ZR18	92Y	XL	8	7.5	9	7.5	1389	50	645	560 AA A
18	45	245/45R18	100Y	XL	8	7.5	9	-	1764	50	685	560 AA A
18	45	235/45R18	98W	XL	8	7.5	9	-	1653	50	677	560 AA A
18	45	225/45R18	95W	XL	7.5	7	8.5	-	1521	50	667	560 AA A
17	40	205/40R17	84W	XL	7.5	7	8	-	1102	50	602	560 AA A
17	45	245/45R17	99Y	XL	8	7.5	9	-	1709	50	660	560 AA A
17	45	235/45R17	97W	XL	8	7.5	9	-	1609	50	652	560 AA A
17	45	225/45R17	94W	XL	7.5	7	8.5	-	1477	50	642	560 AA A
17	45	215/45R17	91W	XL	7	7.5	8	-	1356	50	634	560 AA A
17	45	205/45R17	88W	XL	7	6.5	7.5	-	1325	50	624	560 AA A

inch	Series	Size	LI&SS	XL	STD Rim	Rim Width Min	Rim Width Max	Tread Depth（mm）	Max Load(IBS)	Max Pressure(psi)	Overall Diameter	UTQG
20	35	245/35R20	95W	XL	81/2J	8J	91/2J	-	1521	50	686	560 AA A
20	40	275/40R20	106Y	XL	9.5	9	11	-	2094	50	736	560 AA A
20	45	255/45R20	105Y	XL	8.5	8	9.5	-	2039	50	746	560 AA A
20	45	245/45R20	103W	XL	8	7.5	9	-	1929	50	736	560 AA A

inch	Series	Size	LI&SS	XL	STD Rim	Rim Width Min	Rim Width Max	Tread Depth（mm）	Max Load(IBS)	Max Pressure(psi)	Overall Diameter	UTQG
19	40	245/40R19	98W	XL	8.5	8	9.5	-	1653	50	695	560 AA A
19	40	235/40R19	96W	XL	8.5	8	9.5	-	1565	50	679	560 AA A
19	40	225/40R19	93Y	XL	8	7.5	9	-	1433	50	671	560 AA A
19	45	245/45R19	102W	XL	8	7.5	9	-	1874	50	711	560 AA A

inch	Series	Size	LI&SS	XL	STD Rim	Rim Width Min	Rim Width Max	Tread Depth（mm）	Max Load(IBS)	Max Pressure(psi)	Overall Diameter	UTQG
18	40	245/40R18	97Y	XL	8.5	8	9.5	-	1609	50	661	560 AA A
18	40	235/40R18	95W	XL	8.5	8	9.5	-	1521	50	653	560 AA A
18	40	225/40ZR18	92Y	XL	8	7.5	9	7.5	1389	50	645	560 AA A
18	45	245/45R18	100Y	XL	8	7.5	9	-	1764	50	685	560 AA A
18	45	235/45R18	98W	XL	8	7.5	9	-	1653	50	677	560 AA A
18	45	225/45R18	95W	XL	7.5	7	8.5	-	1521	50	667	560 AA A

inch	Series	Size	LI&SS	XL	STD Rim	Rim Width Min	Rim Width Max	Tread Depth（mm）	Max Load(IBS)	Max Pressure(psi)	Overall Diameter	UTQG
17	40	205/40R17	84W	XL	7.5	7	8	-	1102	50	602	560 AA A
17	45	245/45R17	99Y	XL	8	7.5	9	-	1709	50	660	560 AA A
17	45	235/45R17	97W	XL	8	7.5	9	-	1609	50	652	560 AA A
17	45	225/45R17	94W	XL	7.5	7	8.5	-	1477	50	642	560 AA A
17	45	215/45R17	91W	XL	7	7.5	8	-	1356	50	634	560 AA A
17	45	205/45R17	88W	XL	7	6.5	7.5	-	1325	50	624	560 AA A

Shoulder Design

Central Chamfered Cross Grooves

Precision Sipes

Central Tread Blocks
